Key Features:Elite-class A/D and D/A conversion for unmatched audio clarity and detailHEXA Core processing allows use of UAD plug-ins with near-zero latency
Six Unison mic preamps offer stunning emulations of classic preamps
Dual Crystal clocking ensures low-jitter, artifact-free recording and solid stereo imaging
Realtime Analog Classics Plus bundle included, featuring legendary plug-in emulations
Comprehensive connectivity including Thunderbolt 3, for seamless integration with your setup5.1 surround monitoring support, perfect for post-production and immersive audio projects
Selectable +24d
Bu operation for compatibility with professional studio gear
Product specs
Computer Connectivity Thunderbolt 3Form Factor Rackmount
Simultaneous I/O 16 x 22A/D Resolution 24-bit/192k
HzBuilt In DSP/FX 6 x UAD DSP Cores
Number of Preamps 2 x mic, 2 x instrument
Phantom Power Yes

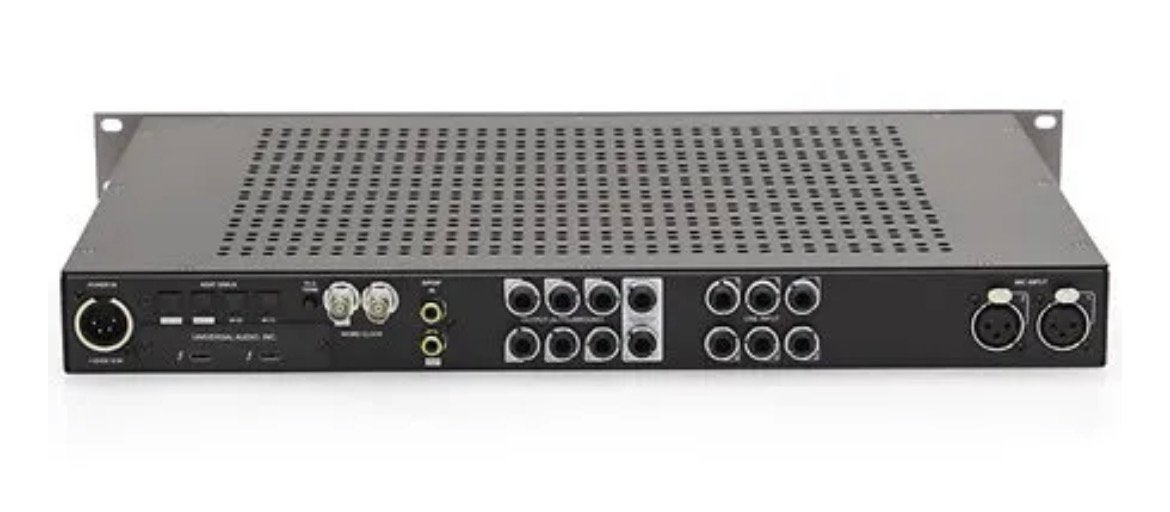

Analog Inputs 2 x XLR (mic), 2 x 1/4" (Hi-Z), 6 x 1/4" (line)Analog Outputs 2 x 1/4" (monitor), 6 x 1/4" (alt/5.1 surround)Digital Inputs 1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)Digital Outputs 1 x Coax (S/PDIF), 2 x Optical Toslink (ADAT/SMUX)Headphones 2 x 1/4"Thunderbolt 2 x USB-C (Thunderbolt 3)Clock I/O In/Out (75 ohm termination switch)Software HEXA Core UAD Plug-in processing, Unison Preamp Emulations, Realtime Analog Classics Plus Plug-ins (VST3, AAX, AU)OS Requirements - Mac macOS 10.15 or later, Quad Core i7 Processor or higherOS Requirements - PC Windows 10 64-bit Anniversary update or later, Quad Core i7 Processor or higher, Thunderbolt 3 port required
Rack Spaces 1UPower Supply 12V DC power supply
Height 1.75"Width 19"Depth 12.12"Weight 9 lbs
Websiteequipboard.com/items/universal-audio-apollo-x6
